Configure a grid layout

To configure a grid layout, add a grid layout object and child objects and then change the properties of the grid layout.
You can define both grid layout columns and rows. If you define columns only,
FactoryTalk Optix Studio
 defines rows automatically. If you define rows only,
FactoryTalk Optix Studio
 defines columns automatically.
Specify width in these units:
Pixels
Absolute unit in pixels. For example,
100
Frames
Proportional unit calculated based on the remaining space. For example,
2fr
 is two times wider than
1fr
TIP: Using frames means that the space not occupied by columns with fixed width is split into the sum of frames. For example: 100;2fr;1fr means that the first column takes 100px, the second column takes 2/3 of the remaining space, and the third column takes 1/3 of the remaining space. If you stretch the grid layout, the first column width remains 100px while second and third column grows or shrinks to maintain the ratio.
Auto
Dynamic unit. Use the
auto
 keyword to determine the column width based on the content of the column.
Example: Grid layout columns width
Grid layout columns width explained
Callout
Unit
Value
Description
1
Pixels
100
Fixed width of 100px
2
Frames
2fr
2/3 of the remaining space
3
Frames
1fr
1/3 of the remaining space
  1. To configure a grid layout
  2. In
    Project view
    , right-click a node to contain the grid layout object and select
    New
    Containers
    Grid layout
    .
  3. (optional) Hover-over the grid layout, select
    Edit
    , and then enter a custom name for the object.
  4. Add or move child graphic objects under the grid layout.
    For more information on how to move graphic objects, see Move a node.
    For example, add buttons under the grid layout to create a grid of buttons. See Button.
  5. In
    Project view
    , select the grid layout and configure grid columns:
    1. In
      Properties
      , hover over the
      Columns
       value and select
      Edit
      .
    2. In the editor, select
      Add
       to add grid columns.
    3. Specify each column width by entering values or creating dynamic links.

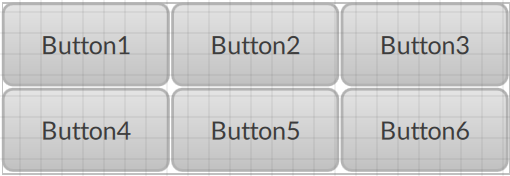

    Example: Grid layout with three columns
  6. Configure grid rows:
    1. In
      Properties
      , hover over the
      Rows
       value and select
      Edit
      .
    2. In the editor, select
      Add
       to add grid rows.
    3. Specify each row width by entering values or creating dynamic links.

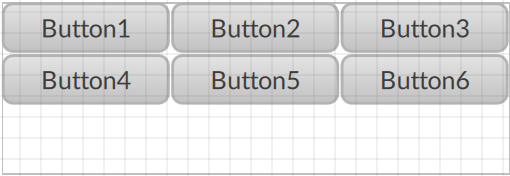

    Example: Grid layout with three columns and two grid rows
  7. In
    Properties
    , set how to display the child graphic objects:
    • Horizontal gap
      . Horizontal space between child objects of the grid layout.

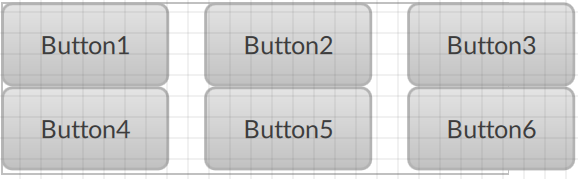

      Grid layout with horizontal gap
    • Vertical gap
      . Vertical space between the rows of wrapped child objects of the grid layout.

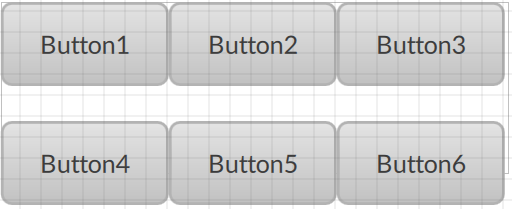

      Grid layout with vertical gap
    • Items Horizontal Alignment
      . Horizontal alignment of child objects in grid cells.

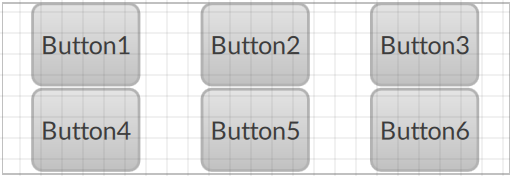

      Grid layout with child objects centered horizontally
    • Items Vertical Alignment
      . Vertical alignment of child objects in grid cells.

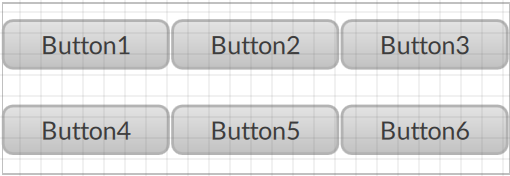

      Grid layout with child objects centered vertically
