Motion Coordinated Transform with Orientation (MCTO)

This information applies to the
Compact GuardLogix
5380,
CompactLogix
5380,
CompactLogix
5480,
ControlLogix
5580, and
GuardLogix
5580 controllers.
Use the Motion Coordinated Transform with Orientation (MCTO) instruction to establish a bidirectional transform that is set up between a Cartesian and a robot system with coordinates that are joint axes of a robot. The XYZ translation coordinates and the RxRyRz orientation coordinates in the fixed angle convention define the Cartesian coordinates. The geometrical configurations of the robots typically have joint axes that are not orthogonal. The coordinate system type, such as Delta, specifies the geometrical configurations.
Architecture and safety support
Architecture
Standard
Safety
CompactLogix 5370, ControlLogix 5570, Compact GuardLogix 5370, and GuardLogix 5570 controllers
No
No
Compact GuardLogix 5380, CompactLogix 5380, CompactLogix 5480, ControlLogix 5580, and GuardLogix 5580 controllers
Yes
No
This is a transitional instruction. Follow these steps when using it:
  • In ladder logic, insert an instruction to toggle the rung-condition-in from false to true each time the instruction should execute.
  • In a Structured Text routine, insert a condition for the instruction to cause it to execute only on a transition.
Available Languages
Ladder Diagram
MCTO_LD_v31
Function Block
This instruction is not available in function block.
Structured Text
MCTO(CartesianSystem, RobotSystem, MotionControl, WorkFrame, ToolFrame);
Operands
IMPORTANT:
Do not use the same tag name for more than one instruction in the same program. Do not write to any instruction output tag under any circumstances.
ATTENTION:
If instruction operands are changed while in Run mode, the pending edits must be accepted and the controller mode cycled from Program to Run for the changes to take effect.
Configuration
The following table provides the operands used to configure the instruction. These operands cannot be changed at runtime.
Operand
Data Type
Format
Description
Cartesian System
COORDINATE_SYSTEM
tag
Cartesian coordinate system used to program the moves.
Reference to Cartesian coordinate system used to program the moves. For controllers that support the REF_TO motion data types, the coordinate system operand type can be replaced by the REF_TO_COORDINATE_SYSTEM type.
Robot System
COORDINATE_SYSTEM
tag
Non-Cartesian coordinate system that controls the actual equipment.
Reference to Non-Cartesian coordinate system that controls the actual equipment. For controllers that support the REF_TO motion data types, the coordinate system operand type can be replaced by the REF_TO_COORDINATE_SYSTEM type.
Motion Control
MOTION_INSTRUCTION
tag
Control tag for the instruction.
Work Frame
POSITION_DATA
immediate
tag
Work Frame offsets are the offsets used to locate the user Work frame of the Robot relative to the origin of the Robot base frame. These offsets consist of an XYZ and RxRyRz value. This allows the programs to be written in the user work space or world frame and transformed to the Robot base frame.
To rotate the target position around the X, Y, or Z axis or offset the target position along the X, Y, or Z axis of the Robot base coordinate system, enter the degrees of rotation into the Rx, Ry, and Rz tag members in units of degrees of rotation, and enter the offset distances into the X, Y, and Z tag members in coordination units. Set the ID member to a value greater than or equal to zero.
To maintain the work frame at the robot base frame, leave structure values at zero, or set the operand tag value to zero.
Tool Frame
POSITION_DATA
immediate
tag
Tool Center Point (TCP) offsets are the offsets used to locate the tool center relative to the center of the End of Arm. These offsets consist of an XYZ and RxRyRz value.
To have the target position account for an attached tool having translation and/or orientation offsets, enter the tool offset distances into the X, Y, and Z tag members in coordination units. Enter the degrees of tool rotation into the Rx, Ry, and Rz tag members in units of degrees of rotation. Set the ID member to a value greater than or equal to zero.
To have the target position reflect only the point at the end-of-arm, leave the structure values at zero, or set the operand tag value to zero.
For further information of configuring coordinate systems refer to the Motion Coordinate System User Manual publication MOTION-UM002.
IMPORTANT:
Do not write to any instruction output tag under any circumstances.
Affects Math Status Flags
No
Major/Minor Faults
This instruction generates a major fault if an invalid reference or the wrong reference type is provided. A major fault can occur if an uninitialized reference or a reference of incorrect type is passed to Coordinate System operands. See Index Through Arrays for array-indexing faults.
Execution
Ladder Diagram
Condition/State
Action Taken
Prescan
Same as Rung-condition-in is false.
Rung-condition-in is false
The .EN, .DN, and .ER are cleared to false.
Rung-condition-in is true and .EN bit is false
The .EN bit is set to true and the instruction executes.
Rung-condition-in is true and .EN bit is true
N/A
Postscan
Same as Rung-condition-in is false.
Structured Text
Condition/State
Action Taken
Prescan
See Prescan in the Ladder Diagram table.
Normal execution
See Rung-condition-in is false followed by Rung-condition-in is true in the Ladder Diagram table.
Postscan
See Postscan in the Ladder Diagram table.
Data Flow of MCTO instruction between two coordinate systems
Establish the reference frame for the joint coordinate system to ensure the transformations work properly. Refer to the applicable geometry configuration topic for further information on establishing the reference frame for a robot coordinate system.
Once the robot reference frame is established, the robot can be moved to any desired position in joint space when transform is not enabled. When MCTO is initiated for the first time, a forward transform is executed first to set the corresponding Cartesian coordinate positions. Once the MCTO instruction is active, a bidirectional transform link is established, so that if the Cartesian coordinate is commanded to move to a target position in the Cartesian space along a linear path, the robot moves to the Cartesian target coordinates along a linear path. Similarly, if the Robot is commanded to move to a joint coordinate position, the Robot moves to the joint target position along a non-Cartesian path. While MCTO instruction is active, the system maintains the coordinate system related data for Cartesian and Robot coordinate systems.
This diagram illustrates the transformation from a Cartesian coordinate system(X,Y,Z,Rx,Ry,Rz) to a Delta robot geometry with 5 axes (J1J2J3J4J5). The Rx, Ry, and Rz represent orientations around X,Y,Z axes in a positive direction.
MCTO_Data flow of MCTO instruction
Configure an MCTO instruction

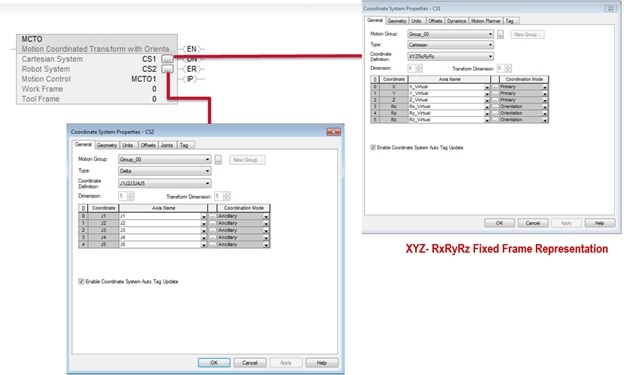

The following illustration shows how to configure an MCTO instruction, with the Cartesian coordinate system as the source and the Delta 5 axis geometry as the target. Configure the source and target coordinate systems in the coordinate system dialog box.
Configure an MCTO instruction
Data flow during forward transform when MCTO is active

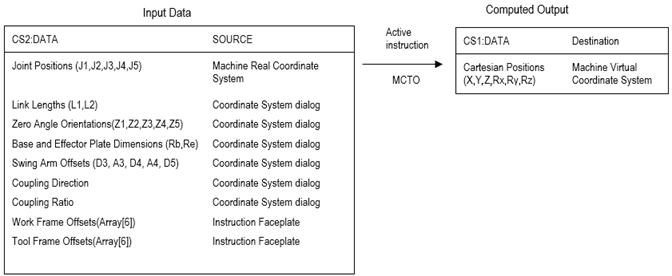

A forward transform executes when a move executes on joint coordinates of a robot system with an enabled MCTO instruction. During forward transform, the current joint angle positions compute the corresponding Cartesian coordinate positions based on geometry.
MCTO data flow with instruction
Data flow during inverse transform when MCTO is active
When MCTO is active, during inverse transform, the instruction uses the current cartesian positions and geometry configuration to compute the corresponding joint angle positions. MCTO returns an Error 61 when moving both Cartesian and Joint coordinate systems simultaneously.
MCTO data flow when MCTO Inverse Transform
Fault codes
For the Motion Coordinated Transform with Orientation (MCTO) instruction, an error will occur at runtime if invalid operand values are provided.
Extended Error codes
Extended Error codes help to further define the error message given by the instruction. Their meaning is dependent upon the Error Code with which they are associated.
Error
Code
EX_ERROR
Code
Description
13
3
Value Out Of Range (base angle)
Any orientation angle Greater than symbol 360 or Less than symbol -360
13
3
Value Out Of Range (base ID)
ID equals any negative value.
13
4
Value Out Of Range (tool angle)
Any orientation angleGreater than symbol 360 or Less than symbol -360
13
4
Value Out Of Range (tool ID)
ID equals any negative value.
61
1
Connection Conflict:
Transform Motion Group Error.
Cartesian or Robot coordinate system is ungrouped, or associated to a different motion group from the other.
61
2
Connection Conflict:
Transform Duplicate Systems Error.
Operand 0 and Operand 1 are of the same coordinate system type.
61
3
Connection Conflict:
Transform Source Dimension Error.
Transform dimension of the Cartesian coordinate system is Less than symbol 2.
61
4
Connection Conflict:
Transform Target Dimension Error.
Robot coordinate system Transform Dimension is equal to zero.
61
5
Attempting to use the CS as multiple sources - FAN-OUT error.
61
6
Attempting to use the CS as multiple targets - FAN-IN error.
61
9
Connection Conflict
Transform Axes Overlap Error
An axis is a member of both the Cartesian and Robot systems.
61
10
Axis or axes are in motion with the below exception:
Gearing or camming motion is in progress on the Cartesian CS axes. The Cartesian CS slave axes cannot have a master axis from the Robot CS.
61
12
Connection Conflict
Transform Invalid Link Length
Link length values for any robot geometry must be Greater than symbol 0.0 units.
61
13
Axis is shut down
61
14
Axis is inhibited
61
15
Connection Conflict
Transform Invalid Delta Configuration
Link Length1 must not be equal to LinkLength2
End Effector Offset1 Re must not be negative
For Delta J1J2J6 and Delta J1J2J3J6 End Effector Offset3(D3) must not be negative
(Link length 1 + Rb - Re) must be less than link length 2
(Link length 1 + Rb – Re) must be positive or greater than zero
61
18
Connection Conflict
Transform Invalid Articulated Configuration
When the offset value is invalid for Articulated Independent J1J2J3J4J5J6 geometry, this error is generated.
Base offset Yb must be equal to 0.0
End-Effector offset Ye must be equal to 0.0
End-Effector offset Ze must be equal to 0.0
67
1
Invalid Transform Position
Invalid Rx Orientation
Invalid Rx orientation value at EOA transformations. For 4 axis geometries only Rx = 180 deg position is allowed. For all other positions, it generates an error.
67
2
Invalid Transform Position
Invalid Ry Orientation
Invalid Ry orientation value at EOA transformations. For 4 axis geometries, after removing work frame and tool frame, there should not be any Ry orientation values at EOA
67
3
Invalid Transform Position
Invalid Rz Orientation
147
3-5
Invalid Orientation Scaling Constant
Extended error code 3 : Rx
Extended error code 4 : Ry
Extended error code 5 : Rz
Orientation axis
has scaling constant Greater than symbol MAX_K_CONSTANT_FOR_ORIENTATION_AXIS. or
has scaling constant which is not Integer or
has Conversion ratio between Coordination Units and Position Units other than 1:1.
148
3-5
MCPM Orientation Offset Not
Rx orientation offset not valid.
Extended error code 3 : Rx orientation offset not valid.
Extended error code 4 : Ry orientation offset not valid.
Extended error code 5 : Rz orientation offset not valid.
If robot Geometry is (MO_CD_J1J2J6 or MO_CD_J1J2J3J6) and:
  • workframe offset Rx isn’t 0 or
  • workframe offset Ry isn’t 0 or
  • toolframe offset Rx isn’t 0 or
  • toolframe offset Ry isn’t 0
Or if robot Geometry is MO_CD_J1J2J3J4J5 and:
  • workframe offset Rx isn’t 0 or
  • workframe offset Ry isn’t 0 or
  • toolframe offset Rx isn’t 0 or
  • toolframe offset Rz isn’t 0
149
3-5
Orientation Axis Not Virtual
Extended error code 3 : Rx axis must be virtual if transforms are enabled.
Extended error code 4 : Ry axis must be virtual if transforms are enabled.
Extended error code 5 : Rz axis must be virtual if transforms are enabled.
151
1
Joint Angle J1 Beyond Limits
For details, refer to Geometry related Maximum Joint Limit Section.
151
2
Joint Angle J2 Beyond Limits
For details, refer to Geometry related Maximum Joint Limit Section.
151
3
Joint Angle J3 Beyond Limits
For details, refer to Geometry related Maximum Joint Limit Section.
151
4
Joint Angle Beyond Limits
This indicates the error condition when the Joint 4 in a 5 axis Delta goes beyond turns counter range limit (45899.99Less than symbolJ4Less than symbol-45900)
Ext Error 4 : Joint J4 Beyond Limit
151
5
Joint Angle Beyond Limits
This indicates error condition when the Joint 5 in a 5 axis Delta goes beyond +/-179, +179 Greater than symbol J5 Less than symbol-179
Ext Error 5 : Joint J5 Beyond Limit
151
6
Joint Angle Beyond Limits
This indicates the error condition when the Joint 6 in a 4 axis Delta goes beyond turns counter range limit (45899.99<J6<-45900)
Ext Error 6 : Joint J6 Beyond Limit
152
1
Maximum Orientation Speed Exceed for Rx
When Orientation axis Rx is commanded to move by an angle greater than or equal to 180 degrees in one coarse update period, this error and extended error is returned.
152
2
Maximum Orientation Speed Exceed for Ry
When Orientation axis Ry is commanded to move by an angle greater than or equal to 180 degrees in one coarse update period, this error and extended error is returned.
152
3
Maximum Orientation Speed Exceed for Rz
When Orientation axis Rz is commanded to move by an angle greater than or equal to 180 degrees in one coarse update period, this error and extended error is returned.
153
1
Invalid Translation Position
MOP Invalid X Translation
Translation on X axis is Invalid
153
2
Invalid Translation Position
MOP Invalid Y Translation
Translation on Y axis is Invalid
153
3
Invalid Translation Position
MOP Invalid Z Translation
Translation on Z axis is Invalid
156
1
Singularity Condition Error
Joint 1 axis is close to Arm Singularity condition in Articulated Independent J1J2J3J4J5J6 Geometry
Ext Error 1: Arm Singularity Condition
156
2
Singularity Condition Error
Joint 3 axis is close to Elbow Singularity condition in Articulated Independent J1J2J3J4J5J6 Geometry
Ext Error 2: Elbow Singularity Condition
156
3
Singularity Condition Error
Joint 5 axis is close to Wrist Singularity condition in Articulated Independent J1J2J3J4J5J6 Geometry
Ext Error 1: Wrist Singularity Condition
Example
The following examples activate the transformations between Cartesian coordinate system CS1 and robot coordinate system CS2, which is a Delta 5 axis geometry. In the first example, neither work frame nor tool frame are specified, so Cartesian positions are computed at robot end-of-arm (EOA), with respect to the robot base frame.
Ladder Diagram
L5K_MCTO_Ladder_v31

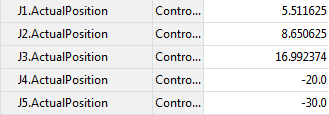

When MCTO is active, with a move to Cartesian positions X = 7.361, Y = -4.25, Z = -928.18, Rx = 180, Ry = 30 and Rz = -30, the MCTO computes the corresponding Joint angle as shown in the following diagram.
MCTO Joint Angle value
Consider the same MCTO, with work frame offsets enabled for X = 50, Y = 50 and Rz = 50. Now MCTO will compute the Cartesian positions with respect to the new work frame.
MCTO_cartesian positions new work frame

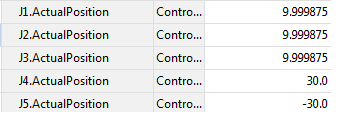

When a move is programmed to the same end position, the corresponding joint positions are as shown in this diagram.
MCTO_same end postion
Consider that the MCTO is programmed with tool frame offsets also enabled for Ry = 50 along with the work frame offsets. MCTO now computes the Cartesian positions with respect to the end of the new work frame and tool frame.
L5K_MCTO RY50

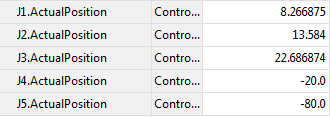

This diagram shows the corresponding Joint angle positions after programming a move to the same end position.
Joint angle positions
For more information on configuring offsets, see Configure Coordinate System Offsets.
Structured Text
MCTO(CS1, CS2, MCTO1, 0, 0);
TIP:
For further information on creating geometries with orientation support, see the Motion Coordinate System User Manual publication MOTION-UM002.
