Configure the main window

Configure the main window

The main window contains all graphical elements displayed at design time in
FactoryTalk Optix Studio
 and at runtime in your
FactoryTalk Optix Application
.
  1. In
    Project view
    , expand
    UI
     and double-click
    MainWindow (type)
    .
    The main window area displays in the editor. The main window does not contain any graphical elements.
  2. In
    Properties
    , set
    Width
     to
    1080
     and
    Height
     to
    600
    .
    The initial dimensions of the main window are now
    1080 x 600
    . At runtime, you can resize the main window at any time. For more information about sizing, see Size conventions.
    TIP: To make the application fit your screen resolution, you can set different
    Width
     and
    Height
     values. Alternatively, you can set
    Full screen
     to
    True
    , however; it is easier to develop and preview applications with the default
    False
     settings.
    Blank resized main window in the editor
  3. (optional) If you want your application window to always float above other windows, set
    Always on Top
     to
    True
    .
  4. (optional) Set
    Caption
     to provide a custom title for your application window.
    For example, set
    Caption
     to
    Quick start application
     to replace the default window title.

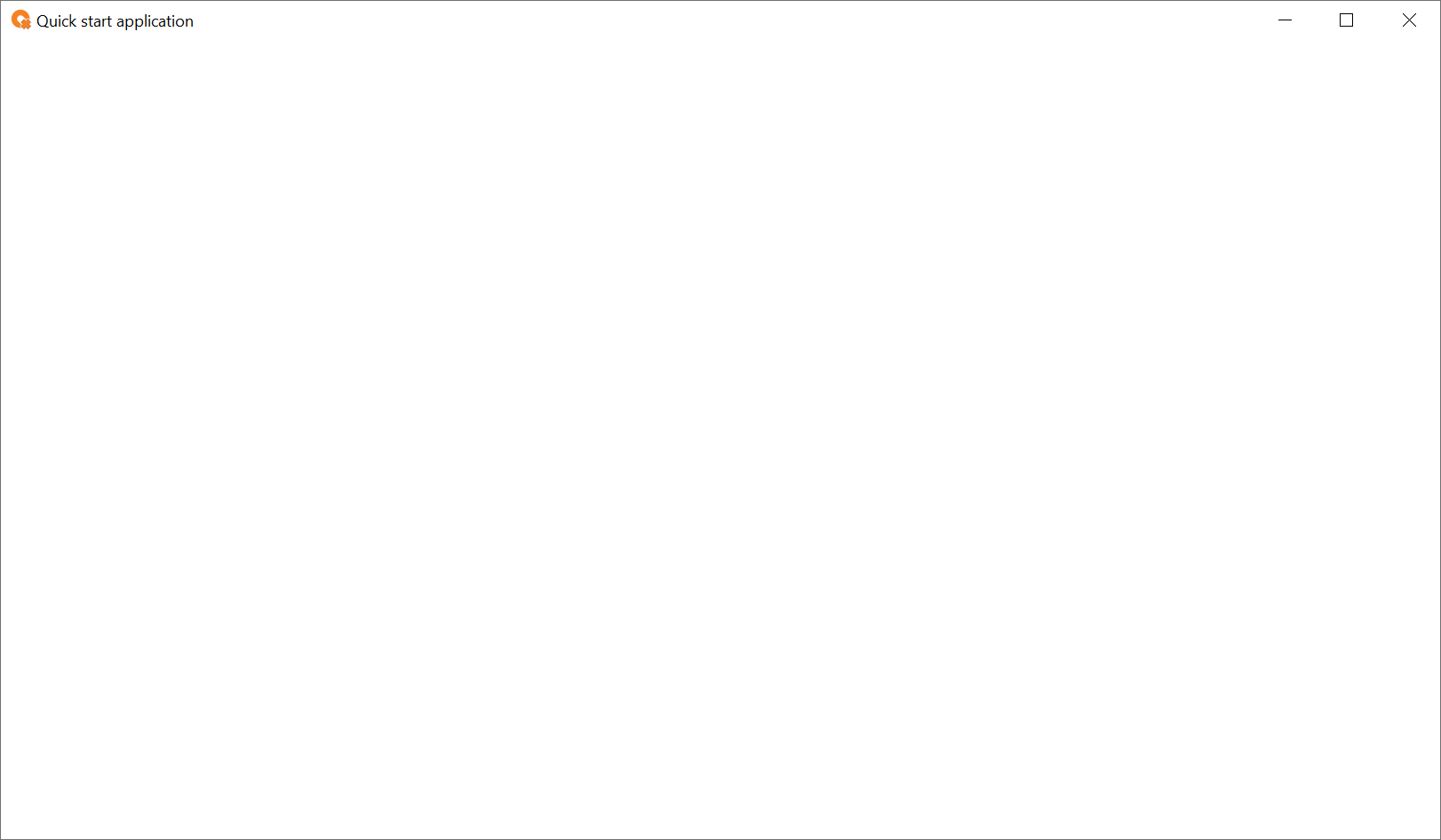

Blank main window with a custom caption
