ASEM 6300T Box Thin Client

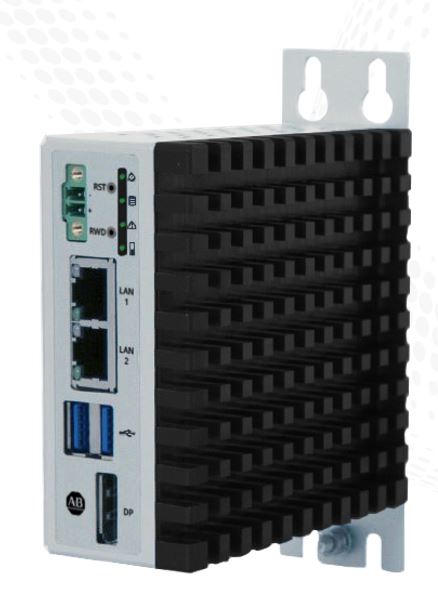

  • ASEM 6300T Single DisplayPort Thin Client



    ASEM 6300T Single DisplayPort Thin Client

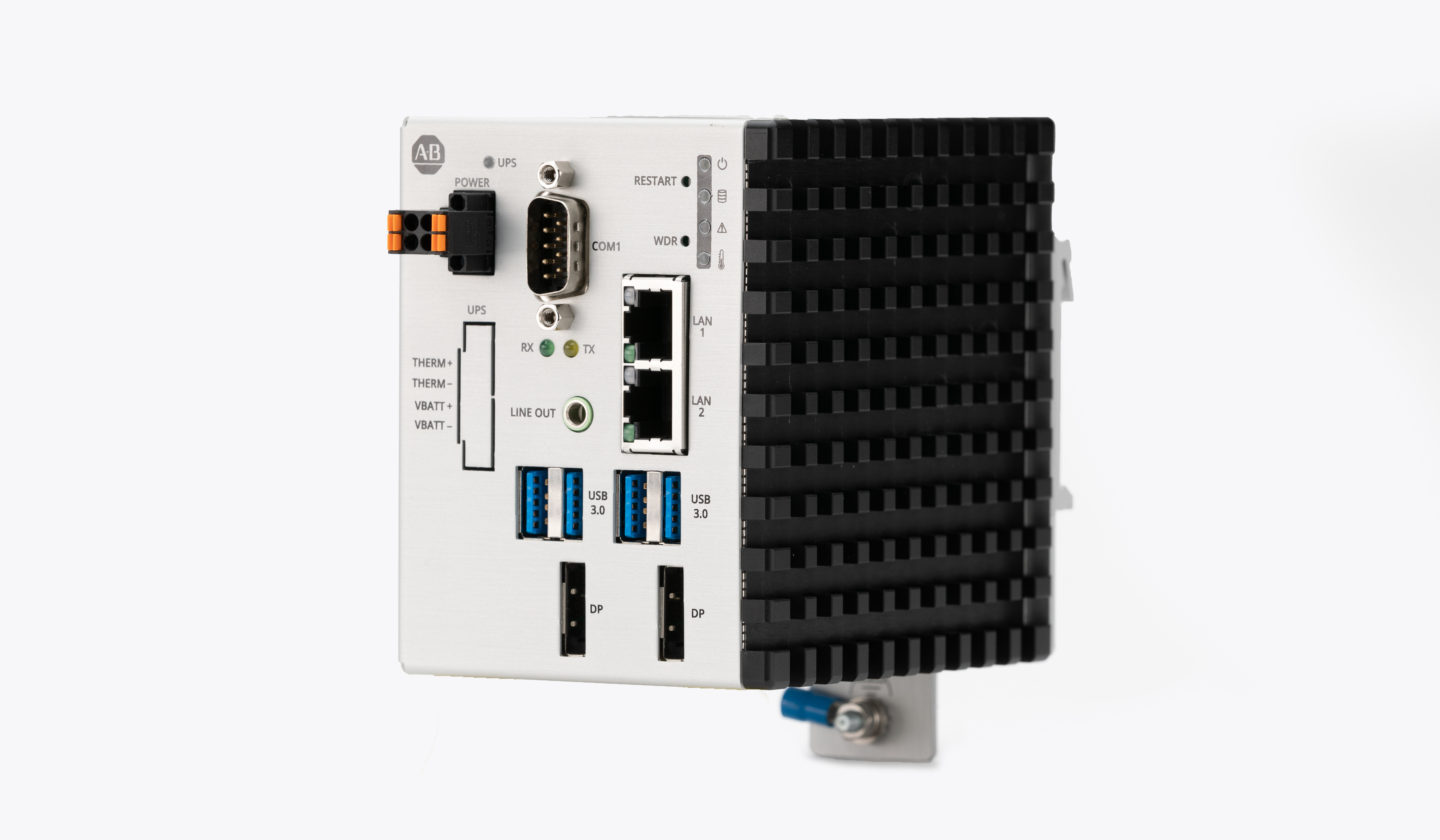

  • Front view of the ASEM 6300T Dual DisplayPort Thin Client on a white background. 6300T-BBD2DA-ABNNNN-N1S



    ASEM 6300T Dual DisplayPort Thin Client

  • Right side view of the ASEM 6300T Dual DisplayPort Thin Client on a white background. 6300T-BBD2DA-ABNNNN-N1S



    ASEM 6300T Dual DisplayPort Thin Client

  • Left side view of the ASEM 6300T Dual DisplayPort Thin Client on a white background. 6300T-BBD2DA-ABNNNN-N1S



    ASEM 6300T Dual DisplayPort Thin Client

ASEM 6300T Single DisplayPort Thin Client



ASEM 6300T Single DisplayPort Thin Client

 ASEM™ 6300T Box Thin Clients are ThinManager® Ready devices for use with ThinManager Software.  ThinManager provides unprecedented control and security in a sustainable and scalable platform. ThinManager's thin client architecture allows for deployment of centrally managed, low-cost hardware while securely delivering the applications and tools familiar to your users.

Contact a Distributor Find A Sales Office
SupportSupport
Get Support
DistributorDistributor
Find a Product Partner
6300T Box Thin Client
Contact a Distributor

Overview





 6300T-BA 6300T-BB 6300T-JB1
Processor

Intel Atom x7-3950 1.6 GHz (2.0 GHz Burst), 4 cores/4 threads, 2 MB L2 cache)

Intel Atom x7-3950 1.6 GHz (2.0 GHz Burst), 4 cores/4 threads, 2 MB L2 cache)

Intel® Celeron® 6305E 1.8 GHz, 2C/4T, 4 MB smart cache, 10 nm
System memory - RAM

4 GB/8 GB, LP-DDR4 - 2400 (soldered)

4 GB/8 GB, LP-DDR4 - 2400 (soldered)

4GB/8GB (soldered)
LAN

2 x Ethernet 10/100/1000 Mbps (Intel I210, RJ45)

2 x Ethernet 10/100/1000 Mbps (Intel I210, RJ45)

4 x Ethernet 10/100/1000/2500 Mbps (Intel i226, RJ45)
USB

2 x USB 3.0 (Type-A)

4 x USB 3.0 (Type-A)

4 x USB 3.2 (Type-A)
Video output

1 x DisplayPort ++ v1.2 (max resolution: 4096 x 2160 @ 60 Hz)

2 x DisplayPort ++ v1.2 (max resolution: 4096 x 2160 @ 60 Hz)

2 x  or 4 x DisplayPort++ V1.4a
Audio

-

Standard 3.5 mm audio output jack

1 x line-out audio stereo

1 x microphone-in
Serial

-

1 x RS232 Port (DB9M)

1 x RS-232/422/485 isolated (DB9M)* 4 Display model only
Power

24V DC (18...32V DC) isolated

24V DC (18...32V DC) isolated

24V DC (18...32V DC) isolated
Mounting

DIN rail mount, wall mount

DIN rail mount with optional accessory, wall mount

Book mount or DIN rail mount
Case material

Aluminum alloy

Aluminum alloy

Aluminum alloy
Operating temperature

0...50 °C (32…122 °F)

0...50 °C (32…122 °F)

0...50 °C (32…122 °F)
Storage temperature

-10...+60 °C (14…140 °F)

-10...+60 °C (14…140 °F)

-20...+65 °C (-4…149 °F)
Humidity 80% (non-condensing)

80% (non-condensing)

20%...90% RH @ 25 °C (77 °F) non-condensing
Approvals
  • CE (EN 61326-1, EN 61010-1, EN 61010-2-201)
  • cULus LISTED (UL61010)
  • RCM
  • CE (EN 61326-1, EN 61010-1, EN 61010-2-201)
  • cULus LISTED (UL61010)
  • RCM
  • Class I Division 2, Groups A, B, C, D T4
  • Class I Zone 2, IIC, T4
  • Europe (ATEX) II 3 G, Ex ec IIC T4 Gc
  • CE (EN 61326-1, EN 61010-1, EN 61010-2- 201)
  • RCM (Australia and New Zealand)
  • cULus Listed (UL61010)
  • REACH
  • Cmim (Morocco) • RoHS
  • KCC (Korea) • UKCle

Note: Thin Client ships without SSD or OS
