Line Time Series Chart

A Time Series Chart, also called a times series graph or time series plot, is a data visualization tool that illustrates data points at successive intervals of time. Each point on the chart corresponds to both a time and a quantity that is being measured.
User can turn on Stack to view multiple Y-Axis values on separated scales in views for Line Time Series Chart. Refer to “Stack” section for steps to turn on Stack.
  1. Open a Storyboard, hover the mouse on a chart tile and click the [] icon to maximize the tile.
  2. Click the [] icon. The Chart Settings window displays.
    View
    Under the Type tab, the list of available chart type displays.
  3. Click [Line chart]. The available chart models display.
    IMPORTANT:

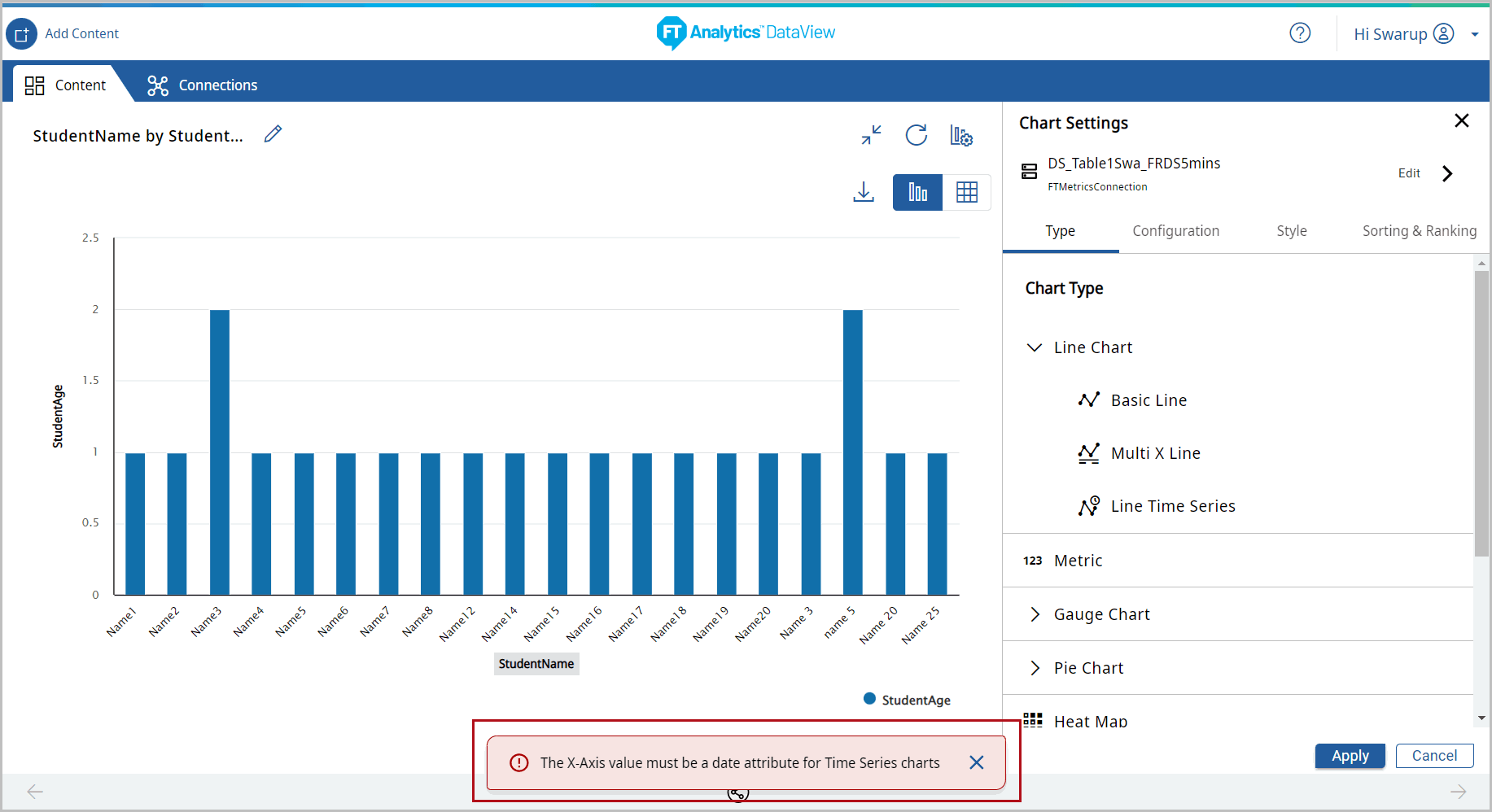

    Ensure that the date attribute is selected on X-Axis. An error message displays if the date attribute is not selected on X-Axis.
    Chart Settings
  4. If the Date attribute is not selected on X-Axis then navigate to Configuration tab and select a date attribute on X-Axis to generate the Time Series chart using the [] icon.

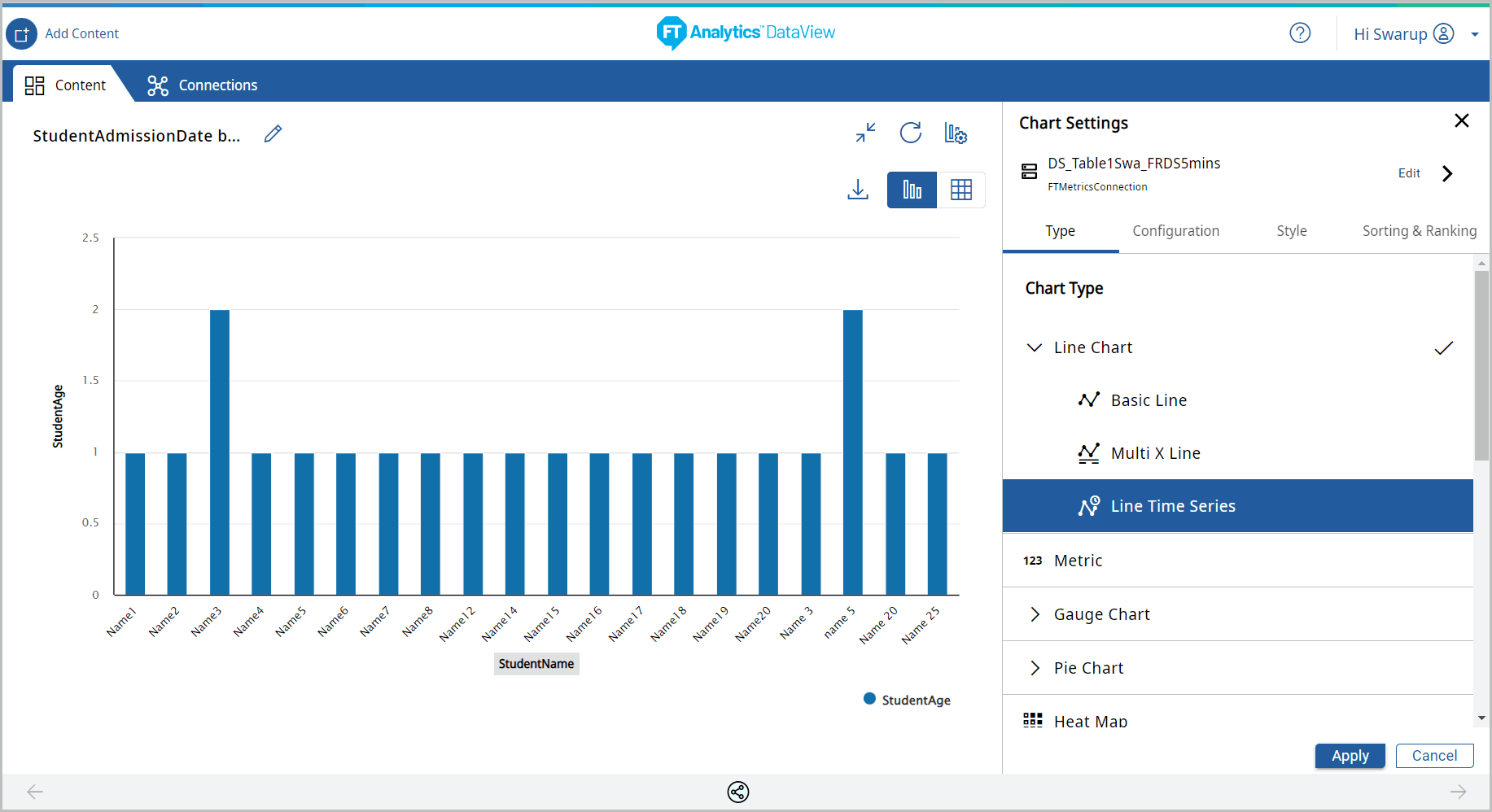

  5. Select the [Line Time Series] chart from the Line chart section.
    Chart Settings
  6. Under the Configuration tab, provide the following properties:
    • Y-Axis: Select the desired attribute using the [] icon. User can select multiple Y-Axis values for this chart.
    • X-Axis: Select a date attribute on X-Axis to generate the Time Series chart using the [] icon.
      NOTE:
      An error message displays if the date attribute is not selected on X-Axis.
    • Legend: Select the desired field from the drop-down list to apply a different series on top of X-Axis or Y-Axis for comparing the available data.
    • Tooltip: User can select the values to be displayed on the tooltip.
    • Min/Max: User can select the minimum and maximum values to display on chart.
    • Reference Line: User can set the properties to view the Reference Line on the Chart.
      NOTE:
      The Reference Line option is not available, if the Storyboard is generated with direct query.
  7. Under the Style tab, User can change the following:
    • Chart Theme: Change the theme color.
    • Chart Settings: User can enable or disable the following options:
      • Chart Title, Cross Hairs, Data Label, and Grid Line.
  8. Click [Apply].
    Chart Settings

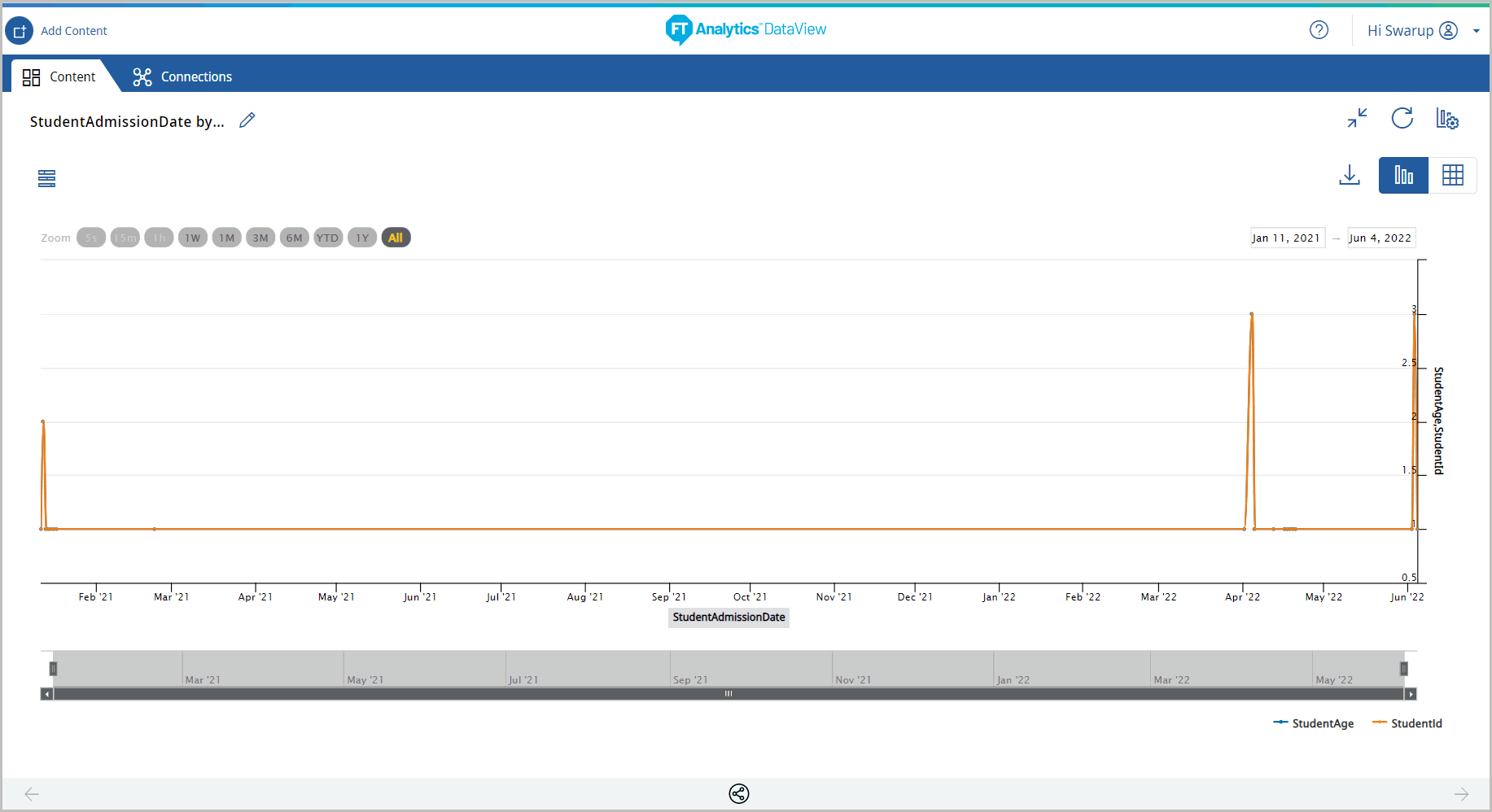

    The Line Time Series chart displays.
    Updated Chart

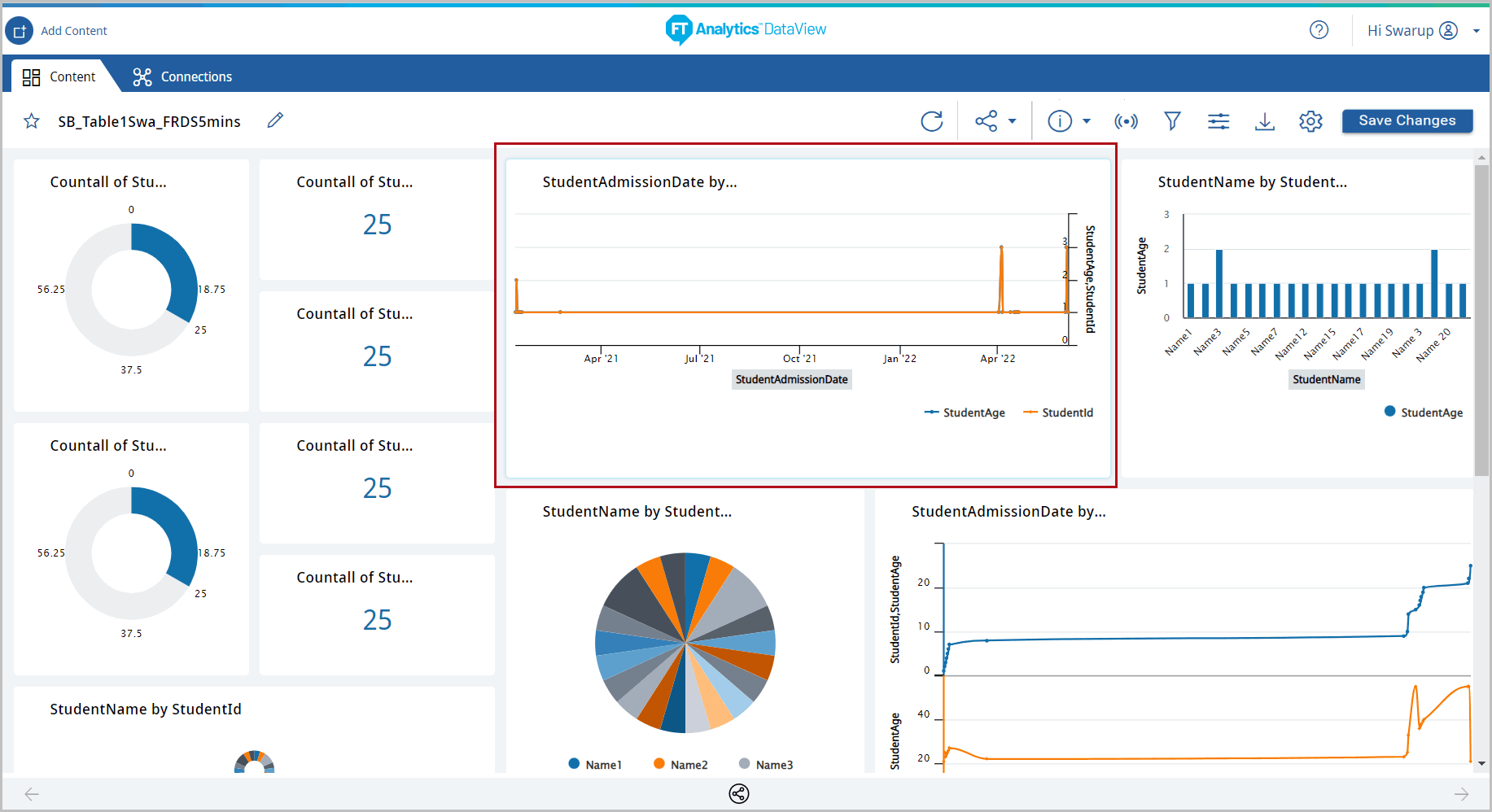

  9. Click the [] icon to minimize the chart. The updated Storyboard displays.
    Storyboard Updated
