Develop a recipes management dashboard

Create a dashboard to add, remove, and modify recipes based on a recipe schema.
The dashboard interface also incorporates additional gauges for displaying and controlling maximum RPM and minimum throttle values of the motor.
Application example
NOTE:
Download a sample project:
 RecipesManagementDashboard.zip
Prerequisites
  1. To develop the project
  3. Create and configure a recipe schema. See Configure a recipe schema or Configure a recipe schema manually.
    While creating the recipe:
    • Create a dynamic link between the
      Target node
       property and
      ProjectName
      Model
      Motor
      .
      For more information about dynamic links, see Create dynamic links.
    • Select the
      Configuration
      MaxRevolutionsPerMinute
       and
      Configuration
      MinThrottle
       parameters.
      TIP: These parameters will be configurable at runtime.
  4. Add and configure a default recipes editor widget. See Configure a recipes editor widget.
  6. Arrange the interface elements.
  7. Save the project.

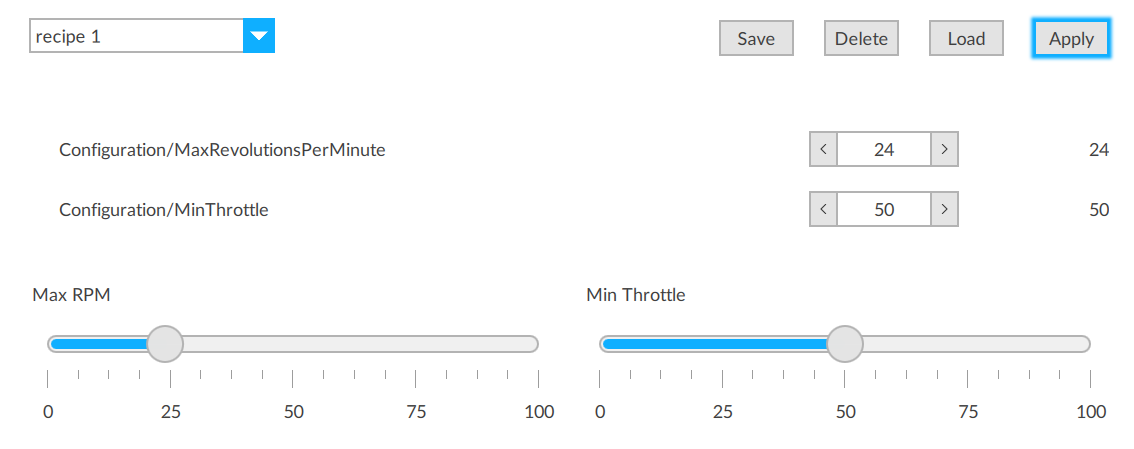

In
FactoryTalk Optix Studio
, select
Run
Run
 to run the project using the client emulator to test your project. To run the project on a remote client, see Add a client device.
