- Alimentação nominal
- 100 a 120 V: 0,2 a 1,1 kW / 0,25 a 1,5 HP / 1,5 a 6 A
- 200 a 240 V: 0,2 a 3,7 kW / 0,25 a 5 HP / 1,4 a 17,5 A
- 380 a 480 V: 0,4 a 3,7 kW / 0,5 a 5 HP / 1,4 a 8,7 A
- IP20 NEMA/UL Tipo aberto, inversor em placa, montagem de flange e trilho DIN
- Kit de conversão opcional do gabinete IP30 NEMA/UL Tipo 1
- Temperaturas ambiente de até 50 °C (122 °F) permitidas com espaçamento mínimo entre os inversores
- Inversores Zero-Stacking™ para temperaturas ambiente de até 40 °C (104 °F)
- Controle de V/Hz, compensação de escorregamento
- Comunicação integral RS-485
- Módulo conversor serial opcional para uso com qualquer controlador com mensagens DF1
- Módulos de comunicação opcionais ControlNet™, DeviceNet™, EtherNet/IP™ Profibus DP, BACnet™ e LonWorks®
- Proteção contra sobrecarga do inversor, regulação da rampa e partida com motor em movimento
- Configuração e programação via teclado integral LCD ou software
- A integração premium com inversores PowerFlex® usa a plataforma de controle Logix para simplificar a programação de parâmetros e tags e reduzir o tempo de desenvolvimento
- Product Selection
- Overview
- Documentation
Product Selection
Mostrando
1
-
24
de
71
Resultados

22A-B1P5F104

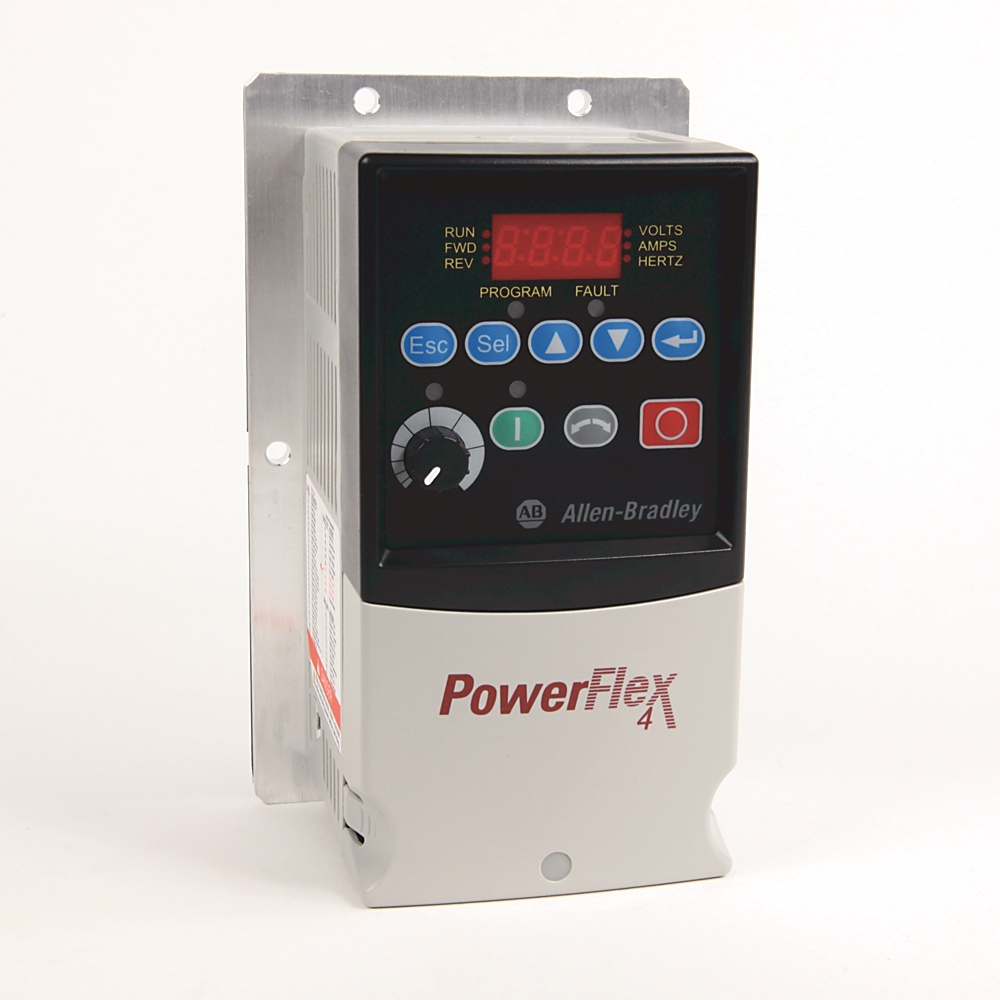

PowerFlex 4 0.2 kW (0.25 Hp) AC Drive
active
Product
PowerFlex4 AC Drive, 240 (208)VAC, 3PH, 1.5 Amps, 0.2 kW, 0.25 HP,Frame Size A, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Fixed Digital Keypad, No CE Compliant Filter, RS485

22A-B2P3F104
PowerFlex 4 0.4 kW (0.5 Hp) AC Drive
active
Product
PowerFlex4 AC Drive, 240 (208)VAC, 3PH, 2.3 Amps, 0.37 kW, 0.5 HP,Frame Size A, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Fixed Digital Keypad, No CE Compliant Filter, RS485

22A-B017F104
PowerFlex 4 3.7 kW (5 Hp) AC Drive
active
Product
PowerFlex4 AC Drive, 240 (208)VAC, 3PH, 17 Amps, 3.7 kW, 5 HP,Frame Size B, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Fixed Digital Keypad, No CE Compliant Filter, RS485

22A-B017H204
PowerFlex 4- 3.7 kW (5 HP) AC Drive
active
Product
PowerFlex4 AC Drive, 240 (208)VAC, 3PH, 17 Amps, 3.7 kW, 5 HP,Frame Size B, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Fixed Digital Keypad / Flash ROM, No CE Compliant Filter, RS485

22A-A8P0H204
PowerFlex 4 1.5 kW (2 Hp) AC Drive
active
Product
PowerFlex4 AC Drive, 240VAC, 1PH, 8 Amps, 1.5 kW, 2 HP,Frame Size B, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Fixed Digital Keypad / Flash ROM, No CE Compliant Filter, RS485

22A-A4P5F104
PowerFlex 4 0.75 kW (1 Hp) AC Drive
active
Product
PowerFlex4 AC Drive, 240VAC, 1PH, 4.5 Amps, 0.75 kW, 1 HP,Frame Size A, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Fixed Digital Keypad, No CE Compliant Filter, RS485

22A-V1P5H204
PowerFlex 4 0.2 kW (0.25 Hp) AC Drive
active
Product
PowerFlex4 AC Drive, 120VAC, 1PH, 1.5 Amps, 0.2 kW, 0.25 HP,Frame Size A, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Fixed Digital Keypad / Flash ROM, No CE Compliant Filter, RS485

22A-V2P3H204
PowerFlex 4 0.4 kW (0.5 Hp) AC Drive
active
Product
PowerFlex4 AC Drive, 120VAC, 1PH, 2.3 Amps, 0.37 kW, 0.5 HP,Frame Size A, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Fixed Digital Keypad / Flash ROM, No CE Compliant Filter, RS485

22A-V4P5F104
PowerFlex 4 0.75 kW (1 Hp) AC Drive
active
Product
PowerFlex4 AC Drive, 120VAC, 1PH, 4.5 Amps, 0.75 kW, 1 HP,Frame Size B, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Fixed Digital Keypad, No CE Compliant Filter, RS485

22A-D8P7F104
PowerFlex 4 3.7 kW (5 Hp) AC Drive
active
Product
PowerFlex4 AC Drive, 480VAC, 3PH, 8.7 Amps, 3.7 kW, 5 HP,Frame Size B, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Fixed Digital Keypad, No CE Compliant Filter, RS485

22A-V1P5F104
PowerFlex 4 0.2 kW (0.25 Hp) AC Drive
active
Product
PowerFlex4 AC Drive, 120VAC, 1PH, 1.5 Amps, 0.2 kW, 0.25 HP,Frame Size A, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Fixed Digital Keypad, No CE Compliant Filter, RS485

22A-B4P5F104
PowerFlex 4 0.75 kW (1 Hp) AC Drive
active
Product
PowerFlex4 AC Drive, 240 (208)VAC, 3PH, 4.5 Amps, 0.75 kW, 1 HP,Frame Size A, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Fixed Digital Keypad, No CE Compliant Filter, RS485

22A-B4P5H204
PowerFlex 4 0.75 kW (1 Hp) AC Drive
active
Product
PowerFlex4 AC Drive, 240 (208)VAC, 3PH, 4.5 Amps, 0.75 kW, 1 HP,Frame Size A, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Fixed Digital Keypad / Flash ROM, No CE Compliant Filter, RS485

22A-D1P4H204
PowerFlex 4- 0.4 kW (0.5 HP) AC Drive
active
Product
PowerFlex4 AC Drive, 480VAC, 3PH, 1.4 Amps, 0.37 kW, 0.5 HP,Frame Size A, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Fixed Digital Keypad / Flash ROM, No CE Compliant Filter, RS485

22A-D6P0H204
PowerFlex 4- 2.2 kW (3 HP) AC Drive
active
Product
PowerFlex4 AC Drive, 480VAC, 3PH, 6 Amps, 2.2 kW, 3 HP,Frame Size B, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Fixed Digital Keypad / Flash ROM, No CE Compliant Filter, RS485

22A-V2P3F104
PowerFlex 4 0.4 kW (0.5 Hp) AC Drive
active
Product
PowerFlex4 AC Drive, 120VAC, 1PH, 2.3 Amps, 0.37 kW, 0.5 HP,Frame Size A, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Fixed Digital Keypad, No CE Compliant Filter, RS485

22A-V6P0F104
PowerFlex 4 1.1 kW (1.5 Hp) AC Drive
active
Product
PowerFlex4 AC Drive, 120VAC, 1PH, 6 Amps, 1.1 kW, 1.5 HP,Frame Size B, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Fixed Digital Keypad, No CE Compliant Filter, RS485

22A-A1P5F104
PowerFlex 4 0.2 kW (0.25 Hp) AC Drive
active
Product
PowerFlex4 AC Drive, 240VAC, 1PH, 1.5 Amps, 0.2 kW, 0.25 HP,Frame Size A, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Fixed Digital Keypad, No CE Compliant Filter, RS485

22A-A1P5H204
PowerFlex 4 0.2 kW (0.25 Hp) AC Drive
active
Product
PowerFlex4 AC Drive, 240VAC, 1PH, 1.5 Amps, 0.2 kW, 0.25 HP,Frame Size A, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Fixed Digital Keypad / Flash ROM, No CE Compliant Filter, RS485

22A-A2P3F104
PowerFlex 4 0.4 kW (0.5 Hp) AC Drive
active
Product
PowerFlex4 AC Drive, 240VAC, 1PH, 2.3 Amps, 0.37 kW, 0.5 HP,Frame Size A, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Fixed Digital Keypad, No CE Compliant Filter, RS485

22A-A2P3H204
PowerFlex 4 0.4 kW (0.5 Hp) AC Drive
active
Product
PowerFlex4 AC Drive, 240VAC, 1PH, 2.3 Amps, 0.37 kW, 0.5 HP,Frame Size A, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Fixed Digital Keypad / Flash ROM, No CE Compliant Filter, RS485

22A-D2P3H204
PowerFlex 4- 0.75 kW (1 HP) AC Drive
active
Product
PowerFlex4 AC Drive, 480VAC, 3PH, 2.3 Amps, 0.75 kW, 1 HP,Frame Size A, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Fixed Digital Keypad / Flash ROM, No CE Compliant Filter, RS485

22A-D4P0F104
PowerFlex 4 1.5 kW (2 Hp) AC Drive
active
Product
PowerFlex4 AC Drive, 480VAC, 3PH, 4 Amps, 1.5 kW, 2 HP,Frame Size A, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Fixed Digital Keypad, No CE Compliant Filter, RS485

22A-D4P0H204
PowerFlex 4- 1.5 kW (2 HP) AC Drive
active
Product
PowerFlex4 AC Drive, 480VAC, 3PH, 4 Amps, 1.5 kW, 2 HP,Frame Size A, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Fixed Digital Keypad / Flash ROM, No CE Compliant Filter, RS485
